Reflect DUO – 4x8m – 11cm column – 135° tiltable

Name: Reflect DUO – 4x8m – 11cm column – 135° tiltable
SKU: 96924660
Rating: 4.3 (91 reviews)

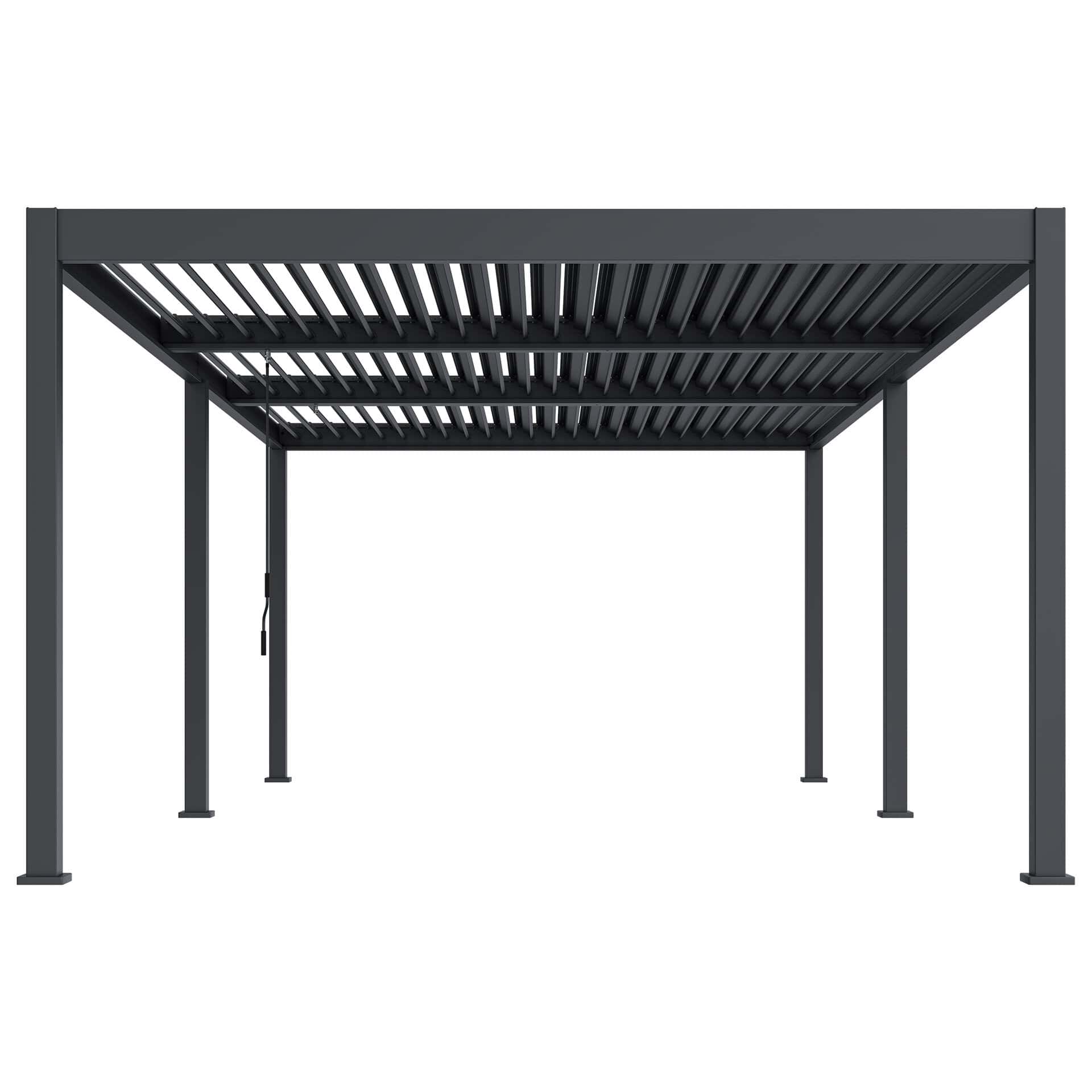

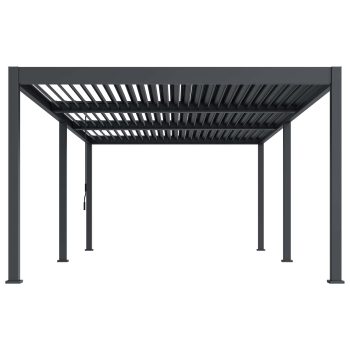

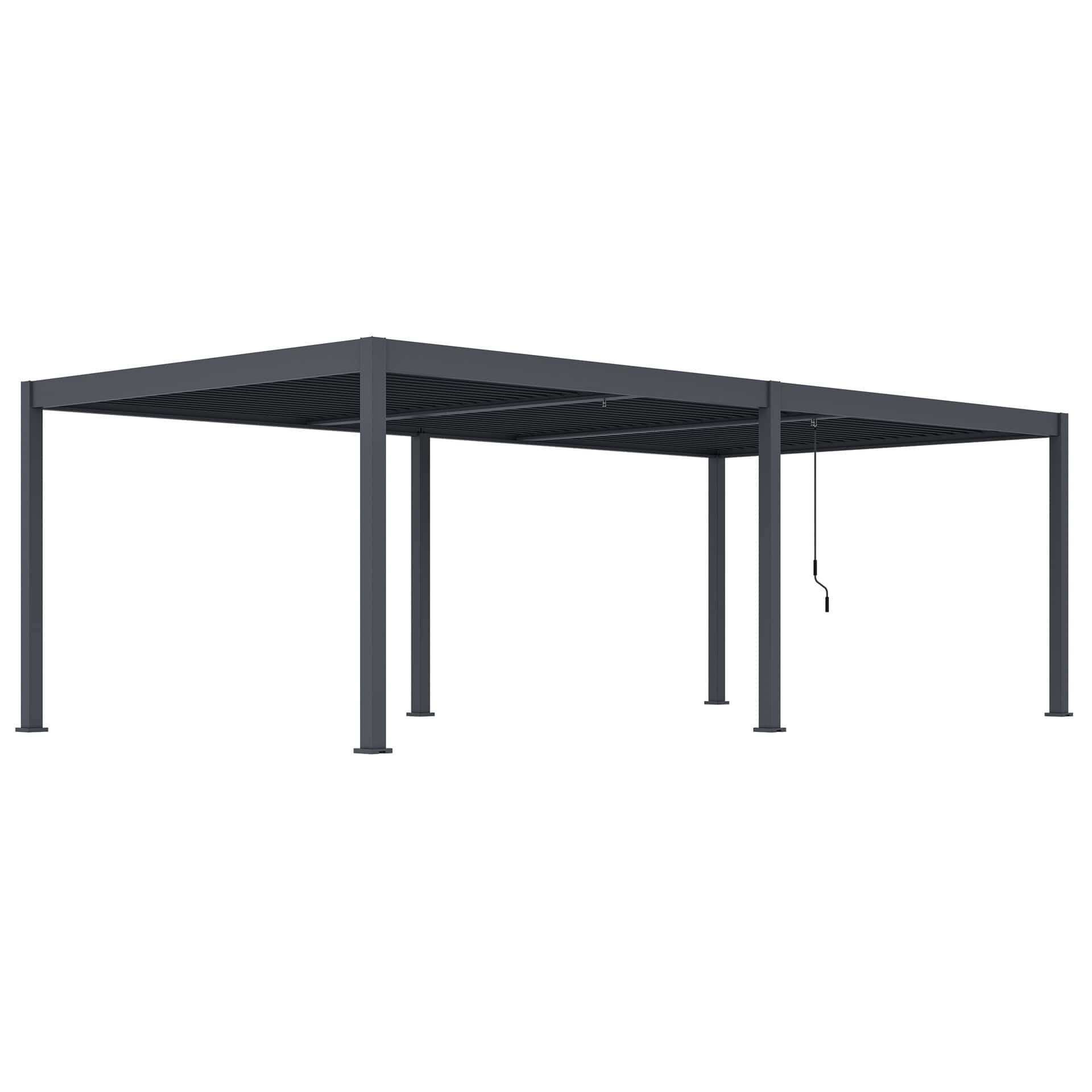

The Reflect DUO 4×8 metre is the ideal pergola for larger outdoor spaces. Thanks to its innovative DUO louvred roof, the roof is divided into three separate sections that can be opened and closed independently. This allows you to easily control the perfect balance of sunlight, shade and ventilation for each roof section.

The robust construction with six 116 mm aluminium columns, 135° tilting louvres, a high cover beam and an integrated water drainage system provides optimum comfort and a premium appearance. The Reflect DUO can also be expanded with Reflect Louvre walls for additional shelter and privacy.

Unique DUO louvred roof with three independently adjustable roof sections

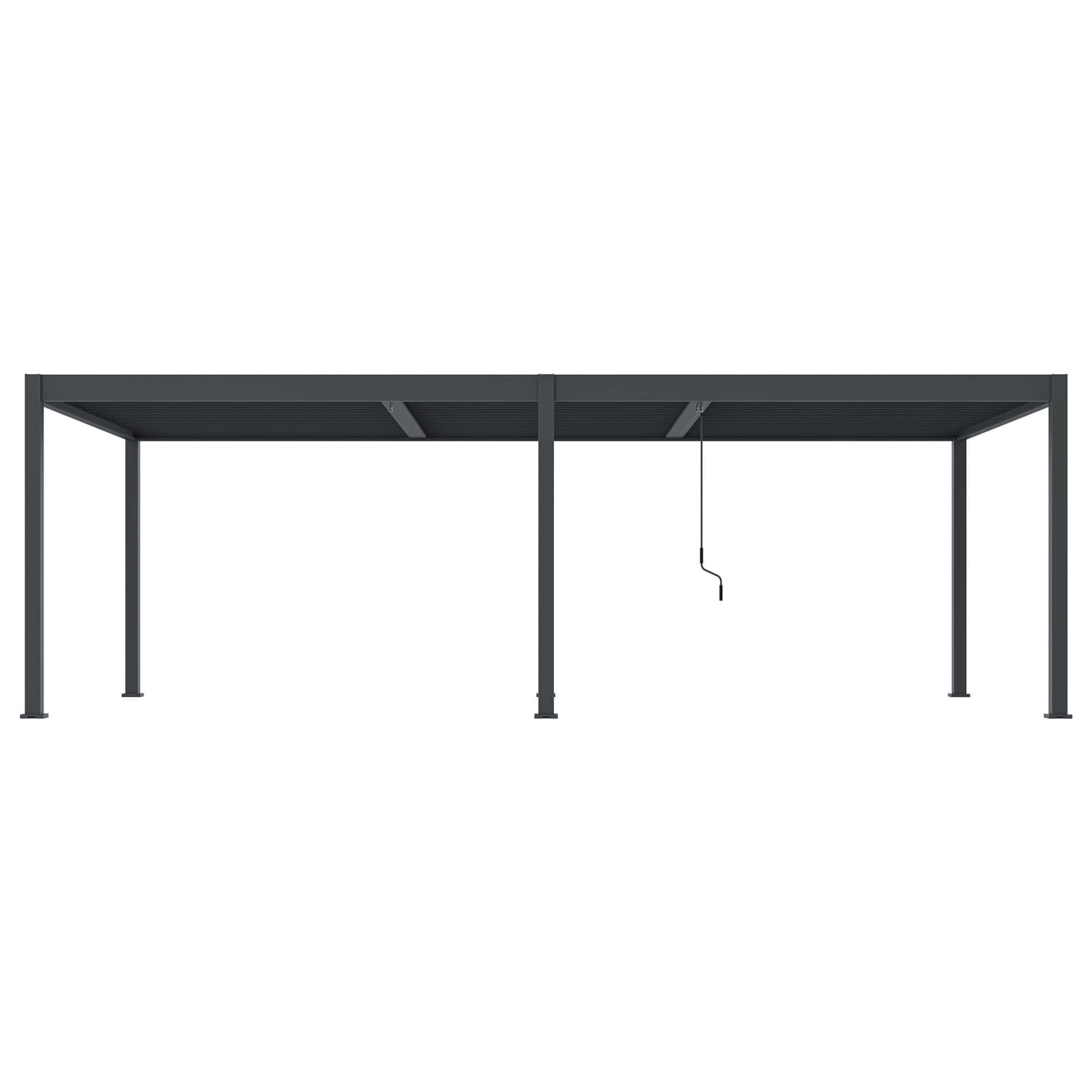

One operating handle that can easily be switched between the different roof sections
Tilting louvres up to 135°
Integrated water drainage system through the columns
High cover beam (High Beam) for a sleek and open design

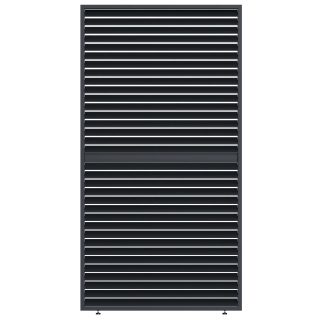

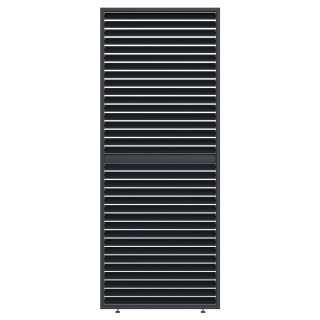

Can be expanded with Reflect Louvre walls

Request a quote?

Request a quote for this product easily and without obligation online and we will send you a customized quote within 24 hours.

Customer rating 4.3/5

Additional information

Height	256 cm
Clearance height	236.5 cm
Width	394 cm
Length	776 cm
Dimensions	4 x 8 meter
Thickness column	116 × 116 mm
Base dimensions	168 x 168 mm
Slat dimensions	166 x 34 mm
Beam dimensions	195 × 75 mm
Color	Anthracite
Material	Aluminium
Material of slats	Aluminium
Type roof	DUO louvre roof
Max. roof load	30 kg/m²
Max. slats open	Max. 135°
Mechanism	Manual Operation
Water drainage system	Equipped with an integrated water drainage system
DUO louvre roof	The roof consists of two separate sections that can be operated independently of one another. This allows you to easily control the desired amount of sunlight, shade and ventilation on each side.
Features	Thanks to the raised beams, the louvres remain out of sight when open. This ensures that the pergola retains a sleek, modern and understated design from every angle.
Form	Rectangular
Mounted	No
Weight	300.8 kg
Series	Reflect DUO Series
Use	Outdoor

Reflect DUO – 4x8m – 11cm column – 135° tiltable

Do you have a question about this model?

Do you have any questions about this product? For example, in which upholstery, colors or dimensions this product is available, we are happy to answer your question. Call +31546 720 200 for all options.

Reflect DUO 4x8 m: Luxury pergola with louvred roof

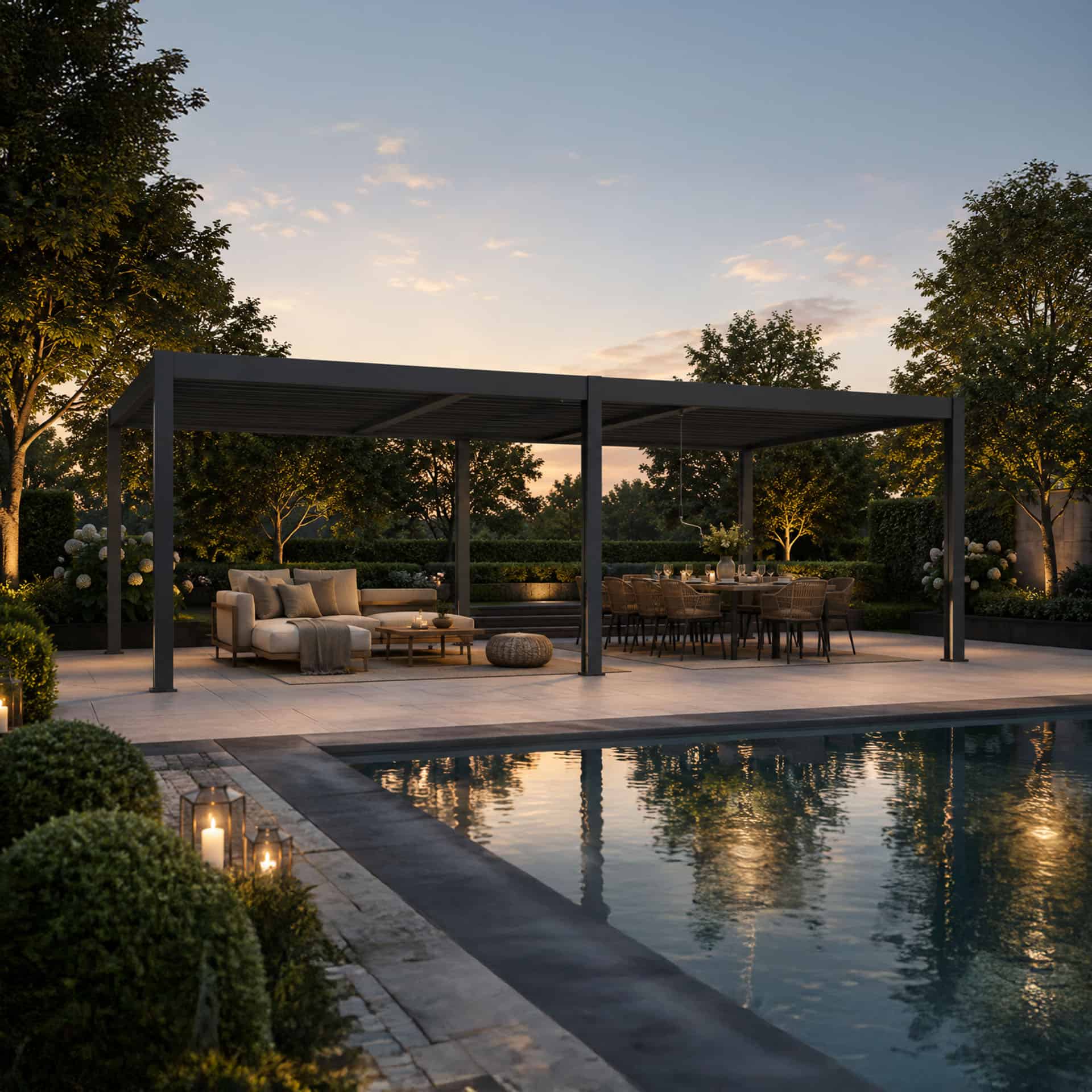

The Reflect DUO 4 x 8 metre is a premium louvred pergola for those looking for maximum flexibility, a luxurious appearance and optimum comfort. Its generous dimensions provide plenty of space for a large lounge set, outdoor kitchen or dining table. The innovative DUO louvred roof allows the three roof sections to be operated independently, so you can always create the perfect combination of sunlight, shade and ventilation.

The roof of the Reflect DUO is divided into three separate louvred roof sections. This allows each roof section to be opened or closed independently. Using the included operating handle, you can easily switch between the different roof sections and adjust the position of the louvres for each section. Ideal for creating different zones, allowing one area to remain in the sun while providing shade in another.

The aluminium louvres can be tilted up to 135°, allowing you to easily control the amount of sunlight, shade and ventilation. Thanks to the wide opening angle, you can enjoy a pleasant outdoor climate throughout the day and adjust each roof section according to the position of the sun.

High cover beam for a sleek design

The Reflect DUO features a high cover beam (High Beam). This allows the open louvres to largely disappear into the structure, keeping them out of direct view. The result is a clean, modern appearance with an unobstructed view upwards.

This model features six robust 116 mm aluminium columns, providing optimum support for the larger span. The strong aluminium construction is low-maintenance, corrosion-resistant and designed for years of worry-free outdoor use.

Thanks to the integrated gutter system, rainwater is channelled through the hollow columns. This keeps the pergola looking sleek and refined without visible downpipes, while allowing you to remain comfortably seated outside during a rain shower.

Key features

Dimensions: 4 x 8 metres
Innovative DUO louvred roof with three independently adjustable roof sections
One operating handle that can easily be switched between the different roof sections
135° tilting aluminium louvres
High cover beam (High Beam) for a sleek and open design
Robust construction with six 116 mm aluminium columns
Integrated water drainage system through the columns
Low-maintenance, corrosion-resistant and weather-resistant
Freestanding model

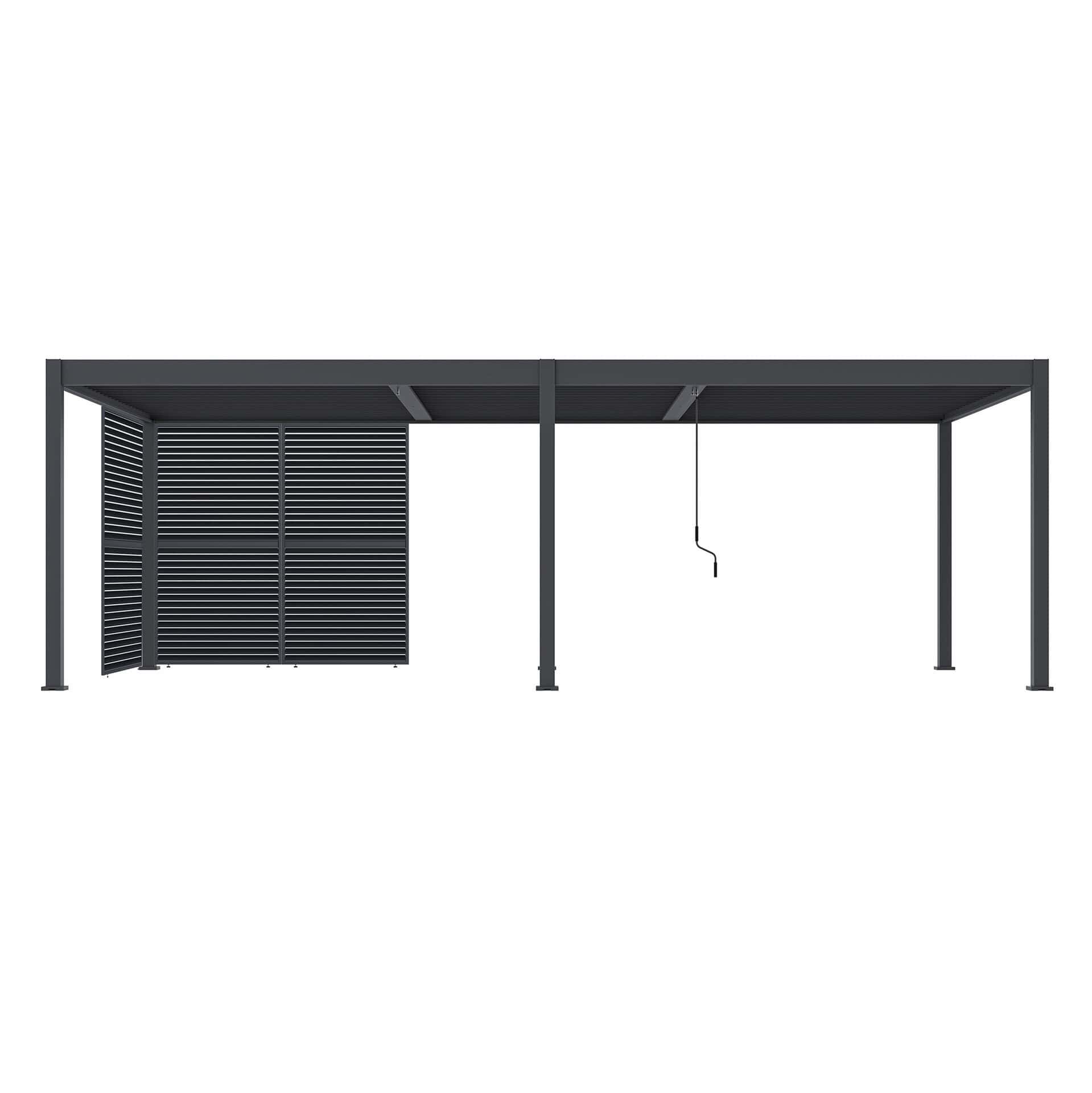

Can be expanded with Reflect Louvre walls

With the Reflect DUO 4x8 metre, you get a premium pergola that combines flexibility, design and ease of use. Thanks to the three independently adjustable roof sections, you can easily create different zones with sunlight and shade, making it ideal for large terraces and long summer evenings.
