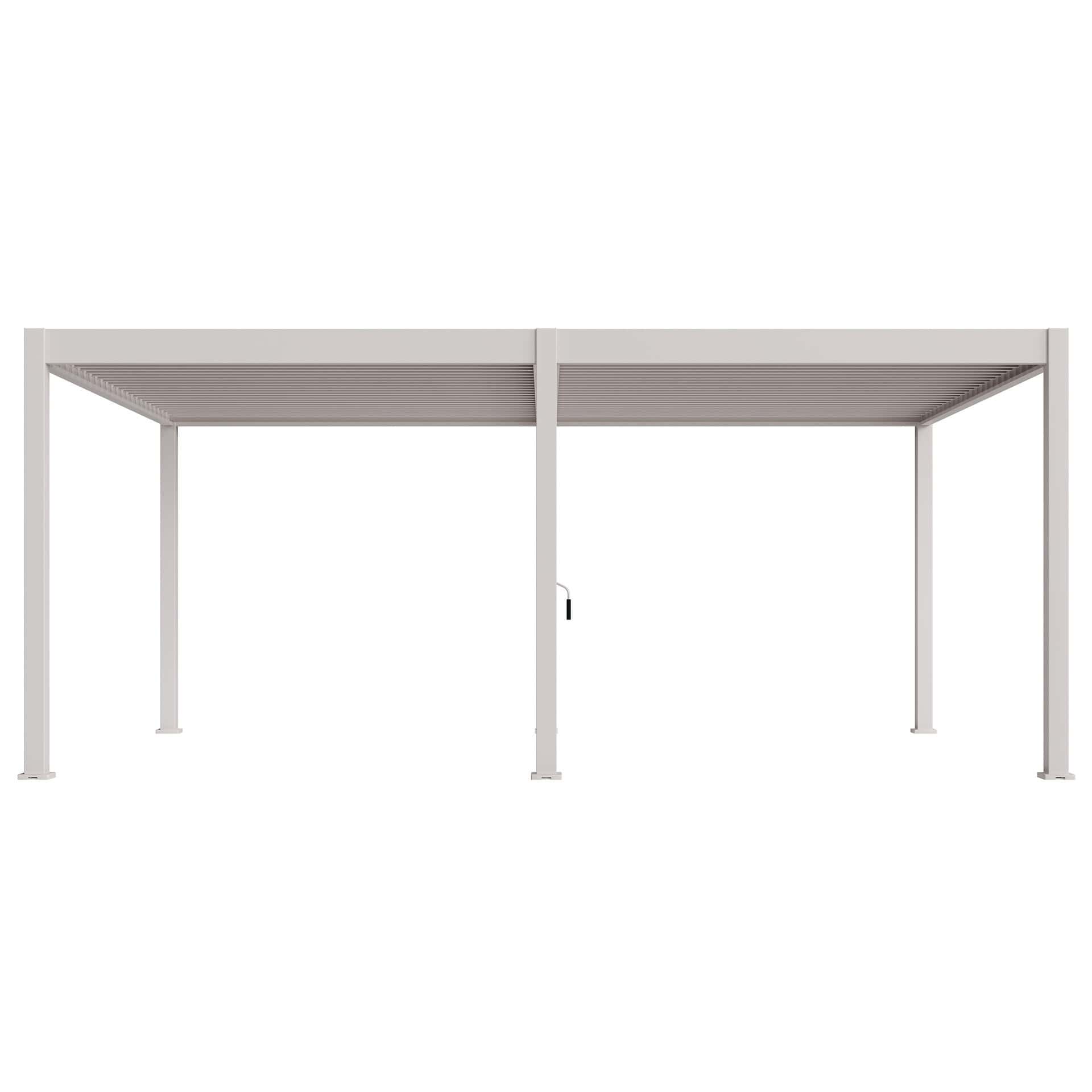

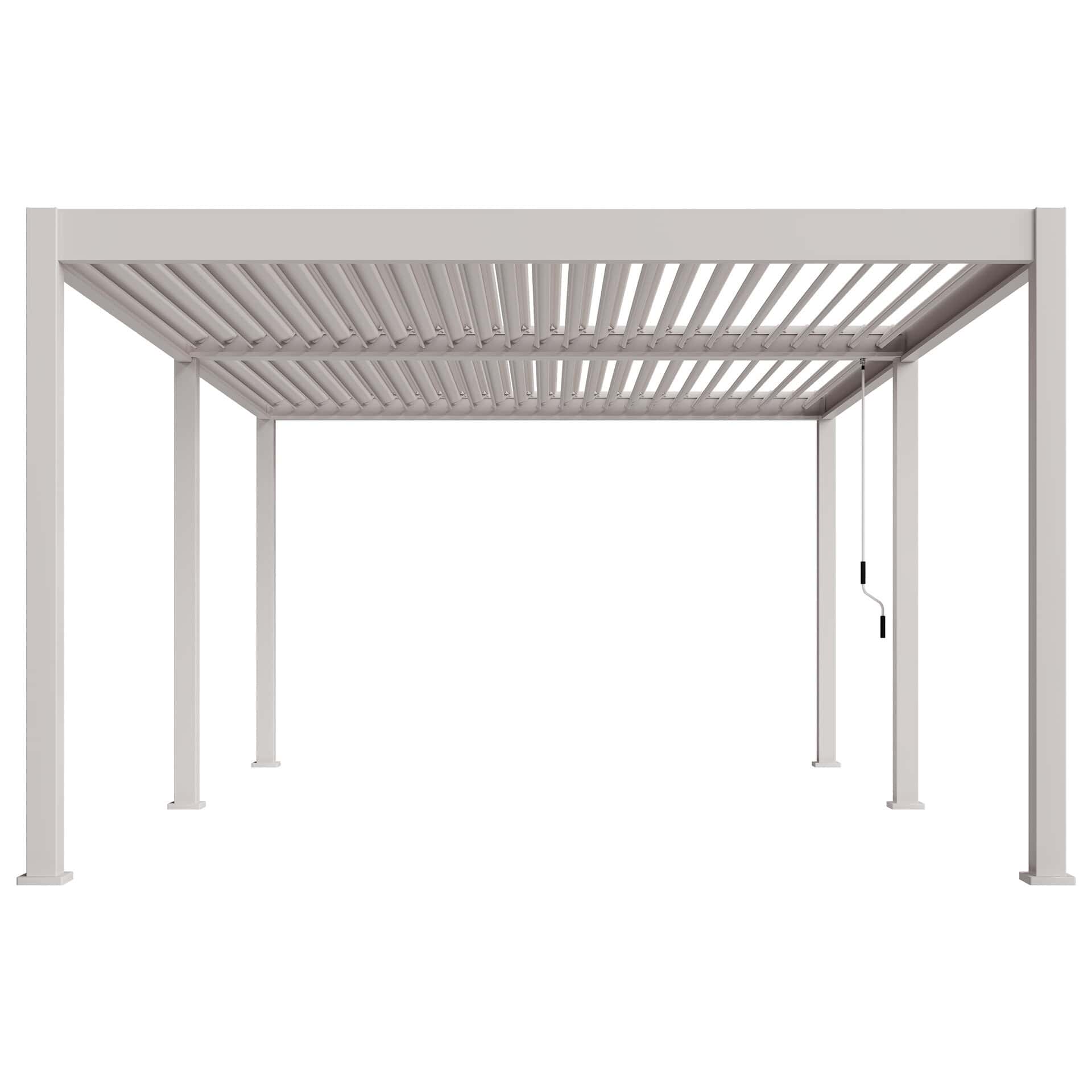

Reflect DUO – 4x6m – 11cm column – 135° tiltable

Name: Reflect DUO – 4x6m – 11cm column – 135° tiltable
SKU: 96924650
Rating: 4.3 (91 reviews)

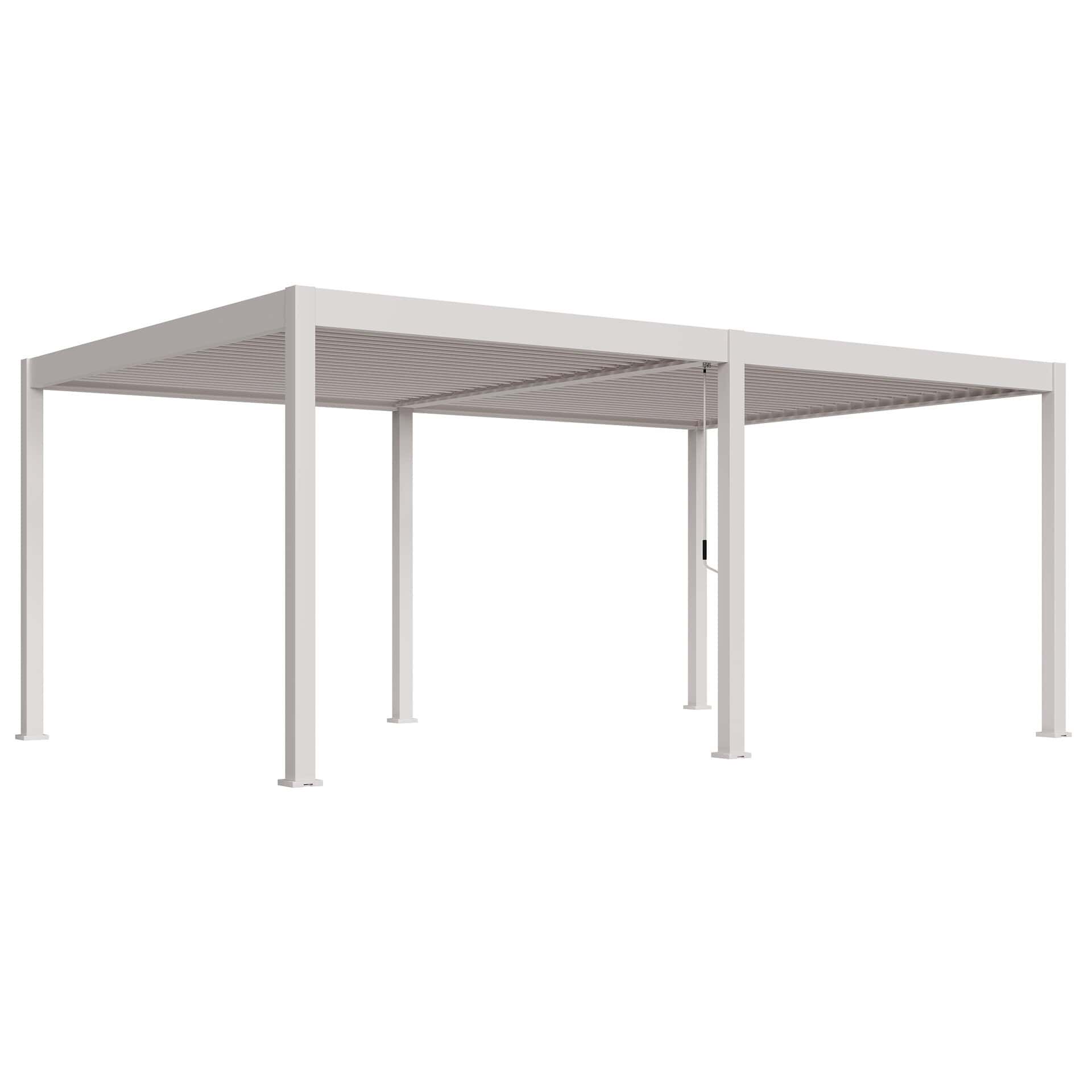

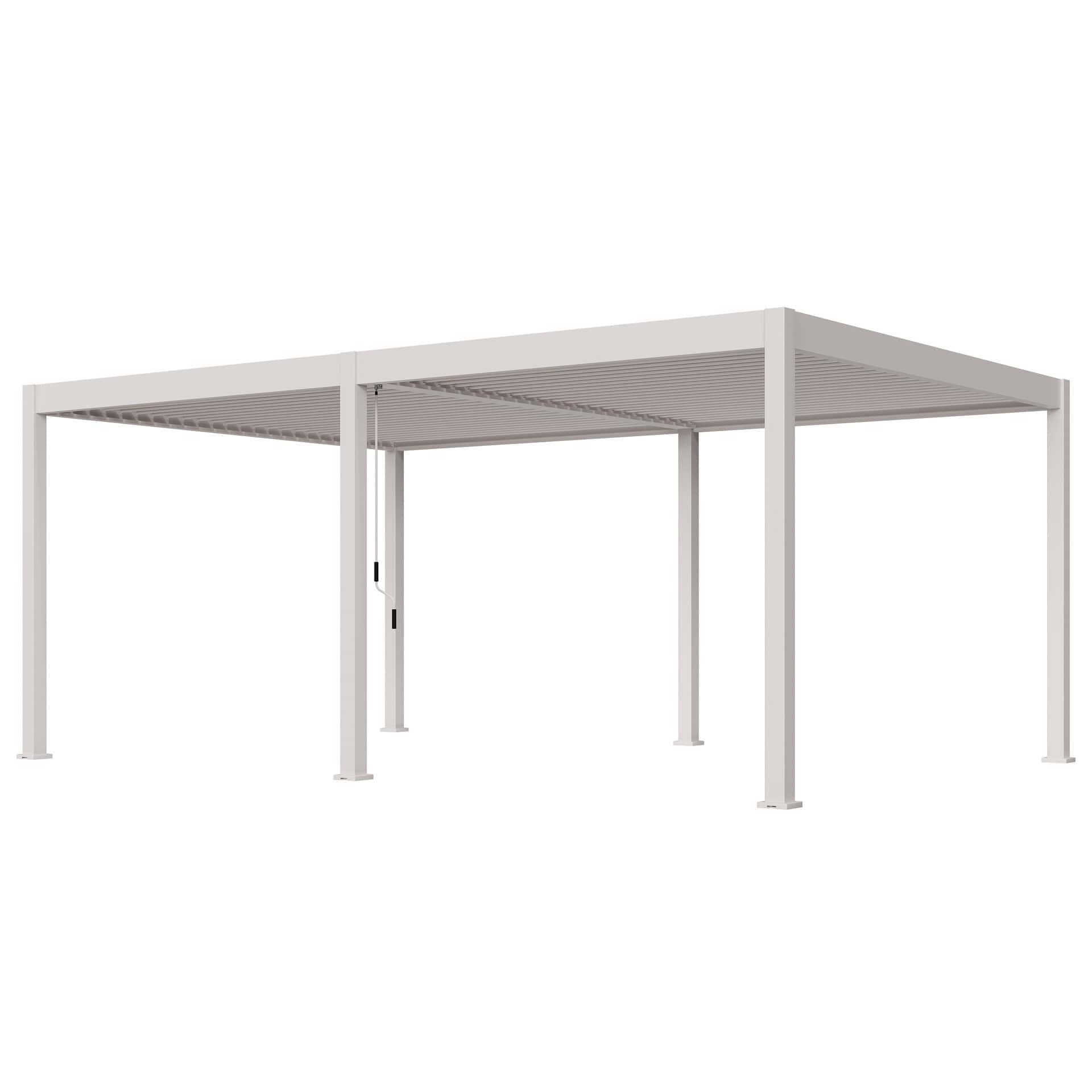

The Reflect DUO 4×6 metres is the ideal patio canopy for larger outdoor spaces. Thanks to the innovative DUO louvre roof, the roof is divided into two separate sections, which can be opened and closed independently of one another. This allows you to easily determine the ideal balance between sun, shade and ventilation for each section of the roof.

The robust structure, featuring six 116 mm aluminium columns, 135° tiltable slats, a high cover beam and an integrated water drainage system, ensures optimum comfort and a luxurious look. The Reflect DUO can also be extended with Reflect Screens and Reflect Louvre walls for extra shelter and privacy.

Unique DUO louvre roof with two separately operable roof sections
A single control lever that switches easily between the two roof sections
Tiltable louvres up to 135°
Integrated water drainage system via the uprights
High Beam for a sleek and open design
Can be extended with Reflect Screens and Reflect Louvre walls

Request a quote?

Request a quote for this product easily and without obligation online and we will send you a customized quote within 24 hours.

Customer rating 4.3/5

Additional information

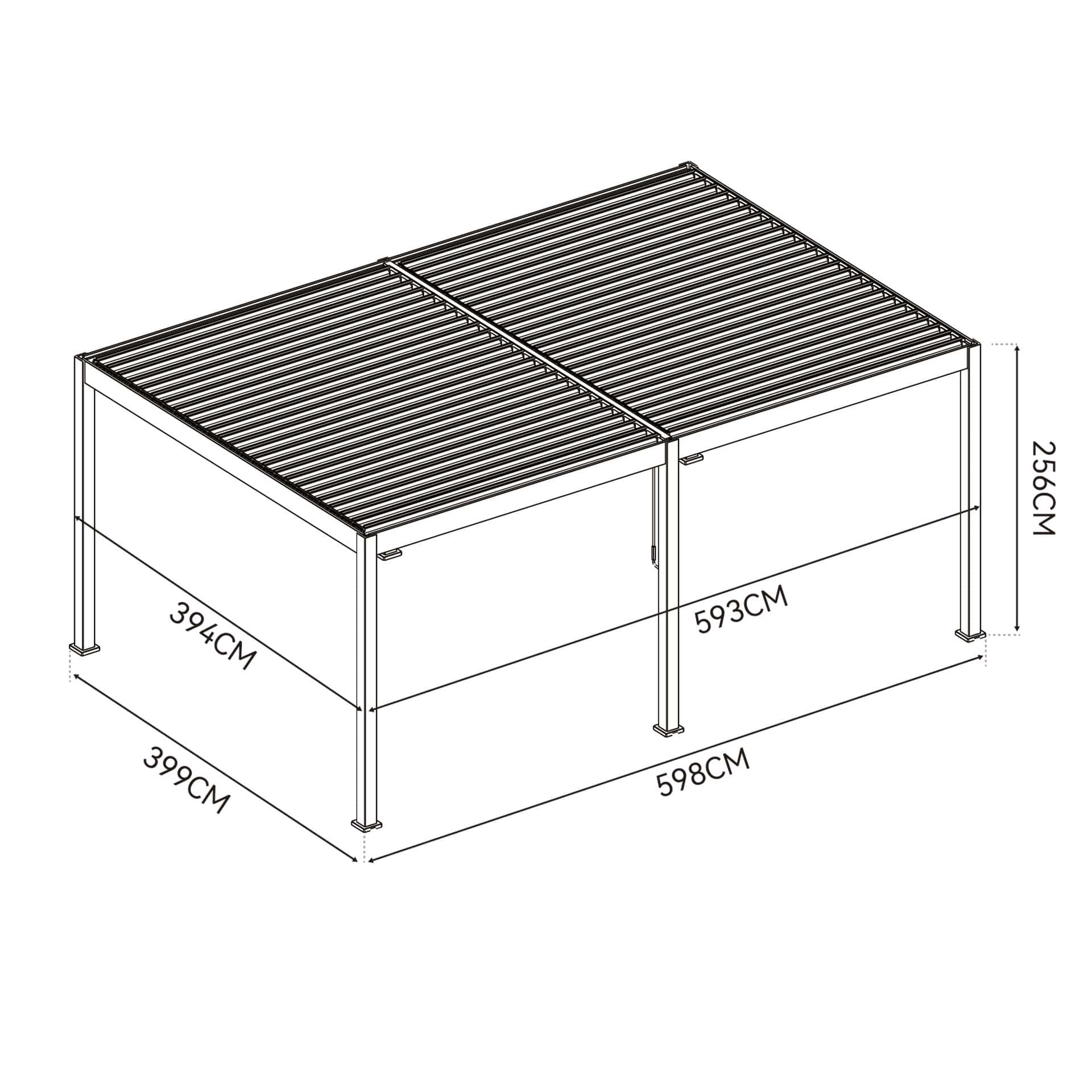

Height	256 cm
Clearance height	236.5 cm
Width	394 cm
Length	593 cm
Dimensions	4 x 6 meter

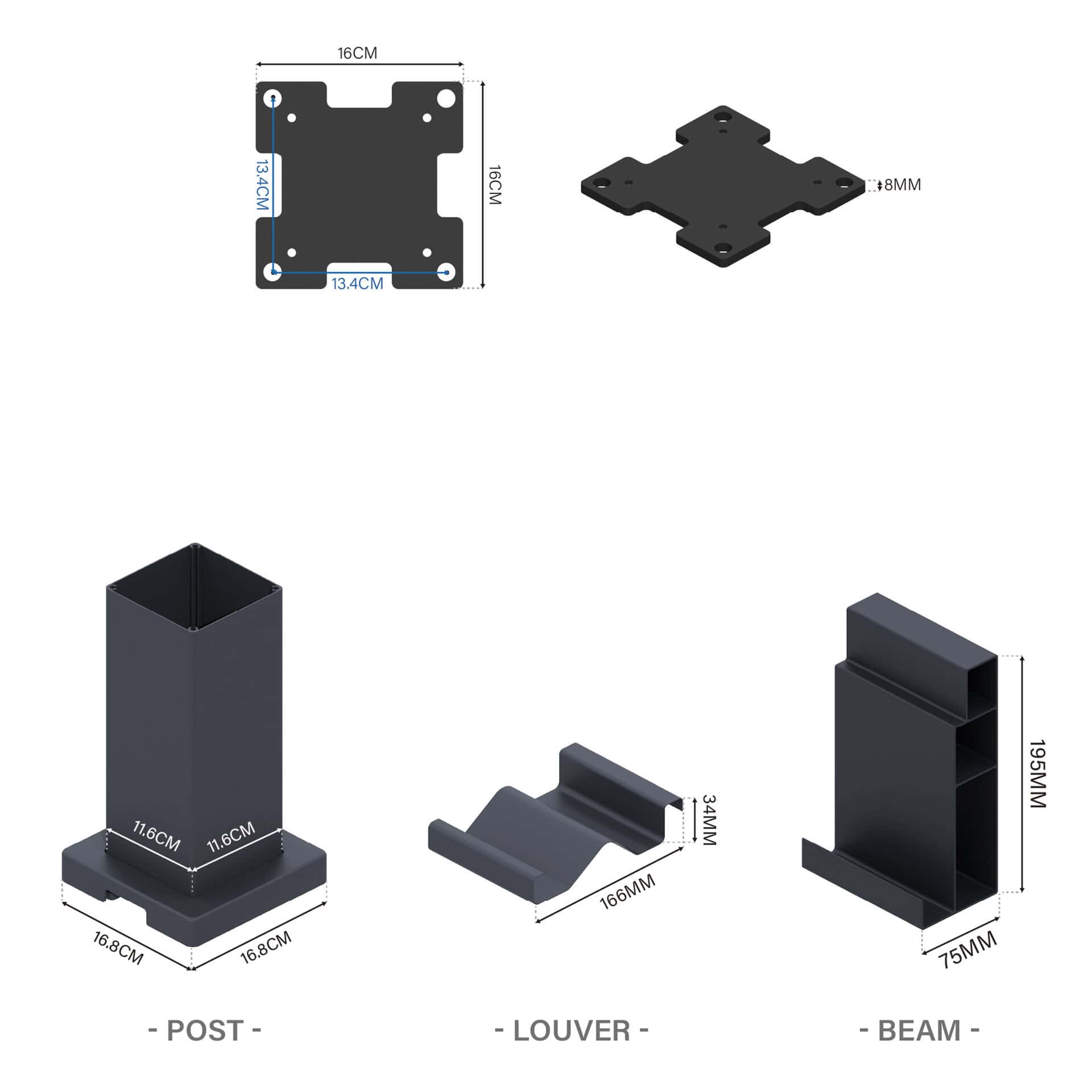

Thickness column	116 × 116 mm
Base dimensions	168 x 168 mm
Slat dimensions	166 x 34 mm
Beam dimensions	195 × 75 mm
Color	Beige
Material	Aluminium
Material of slats	Aluminium
Type roof	DUO louvre roof
Max. roof load	30 kg/m²
Max. slats open	Max. 135°
Mechanism	Manual Operation
Water drainage system	Equipped with an integrated water drainage system
DUO louvre roof	The roof consists of two separate sections that can be operated independently of one another. This allows you to easily control the desired amount of sunlight, shade and ventilation on each side.
Features	Thanks to the raised beams, the louvres remain out of sight when open. This ensures that the pergola retains a sleek, modern and understated design from every angle.
Form	Rectangular
Combine with	Reflect Screens and/or Reflect Louvre walls
Mounted	No
Weight	239.1 kg
Series	Reflect DUO Series
Use	Outdoor

Reflect DUO – 4x6m – 11cm column – 135° tiltable

Do you have a question about this model?

Do you have any questions about this product? For example, in which upholstery, colors or dimensions this product is available, we are happy to answer your question. Call +31546 720 200 for all options.

Reflect DUO 4x6 m: Luxury terrace canopy with double louvre roof

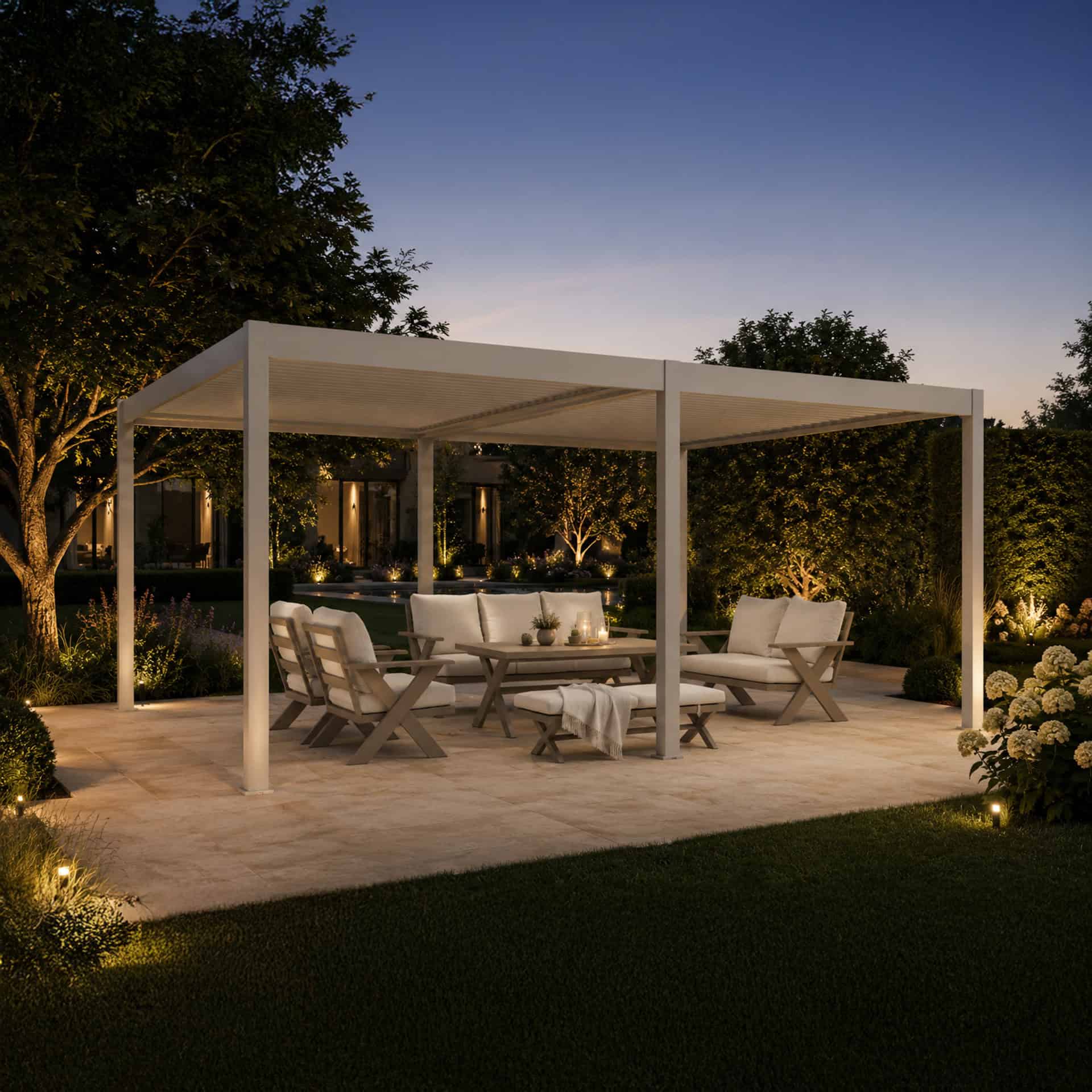

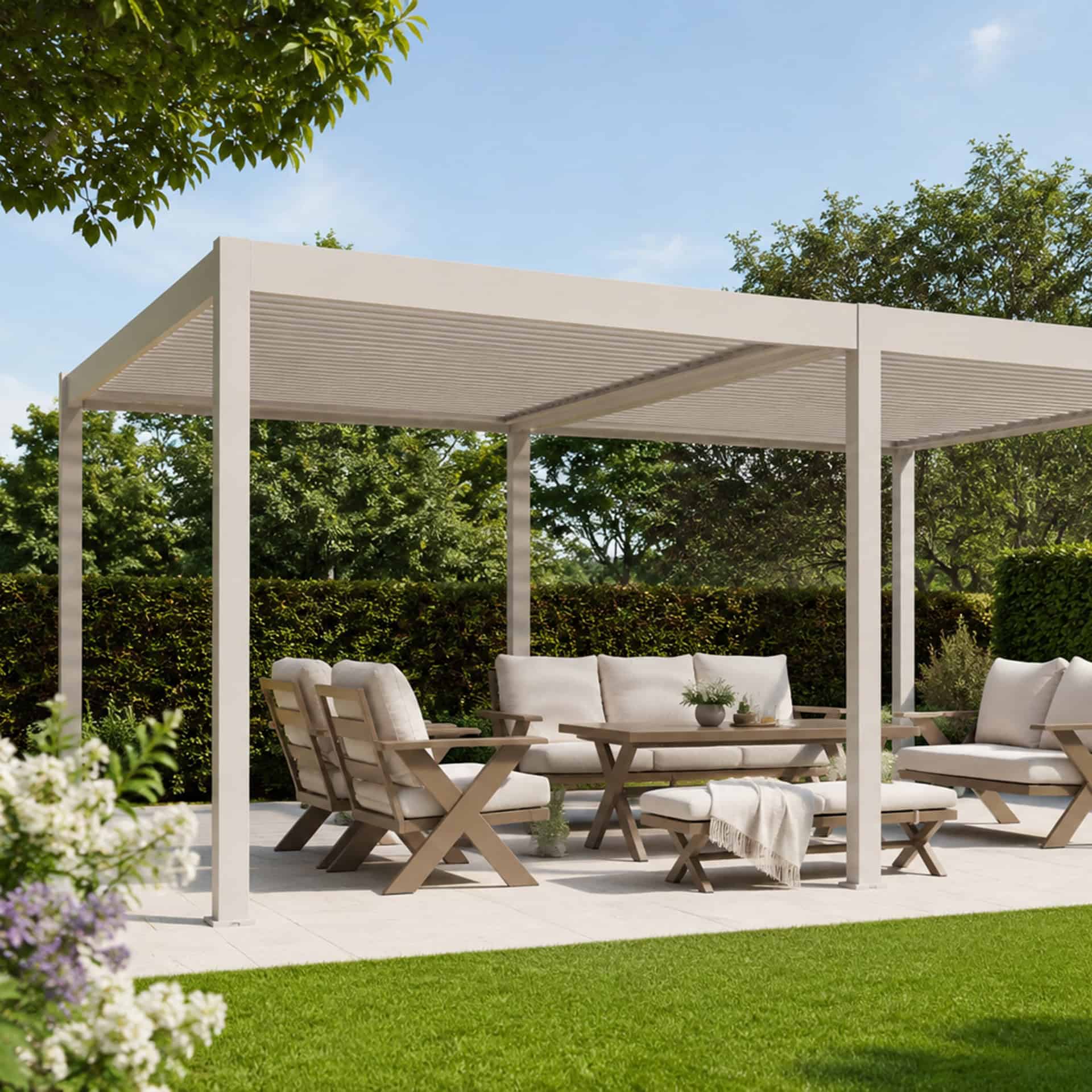

The Reflect DUO 4 x 6 metres is a high-quality louvre canopy for those seeking maximum flexibility, a luxurious look and optimum comfort. Thanks to its generous dimensions, this pergola offers plenty of space for a large lounge set, outdoor kitchen or dining table. The innovative DUO louvre roof allows you to operate the two roof sections independently of one another, so you can always create the perfect combination of sun, shade and ventilation.

Two separate roof sections

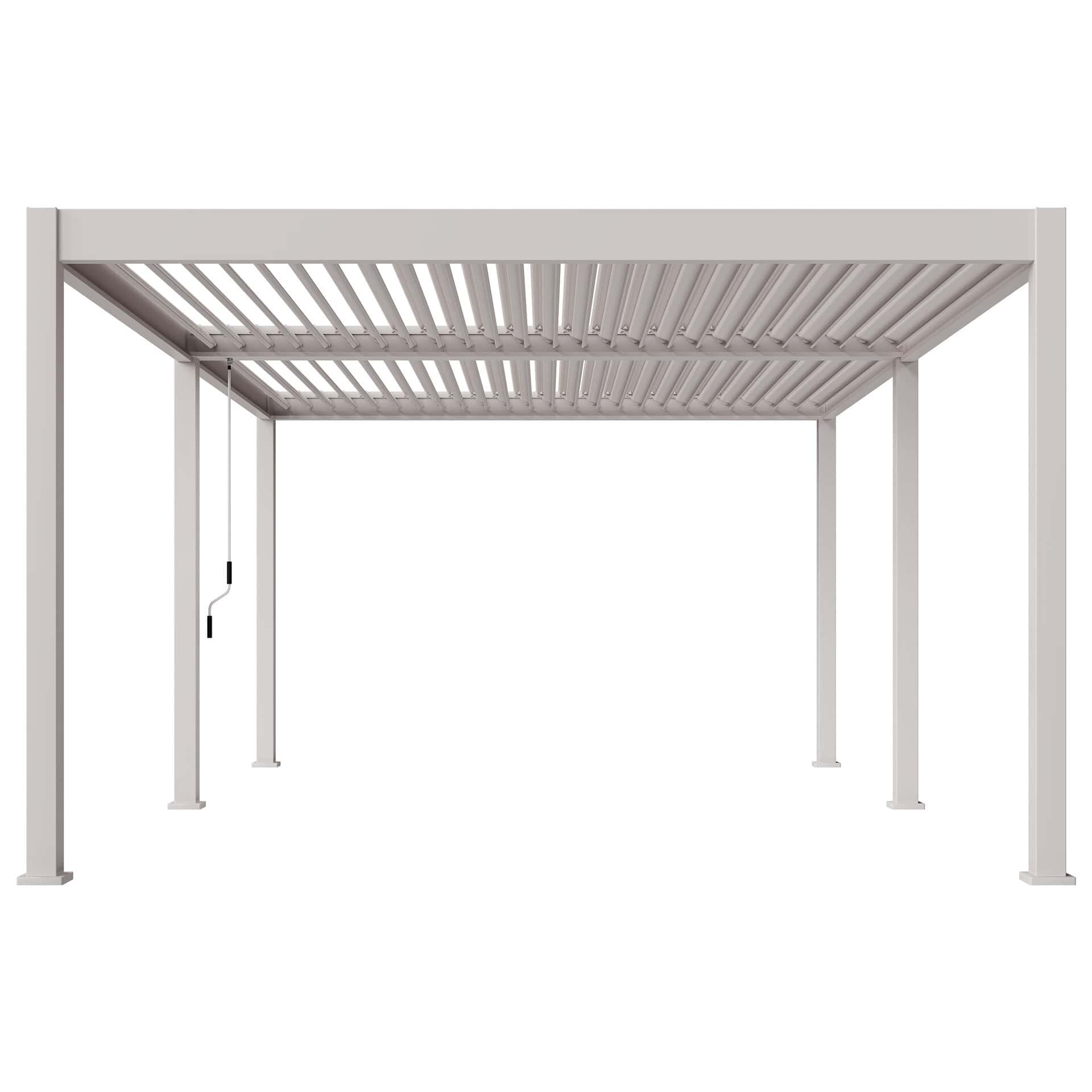

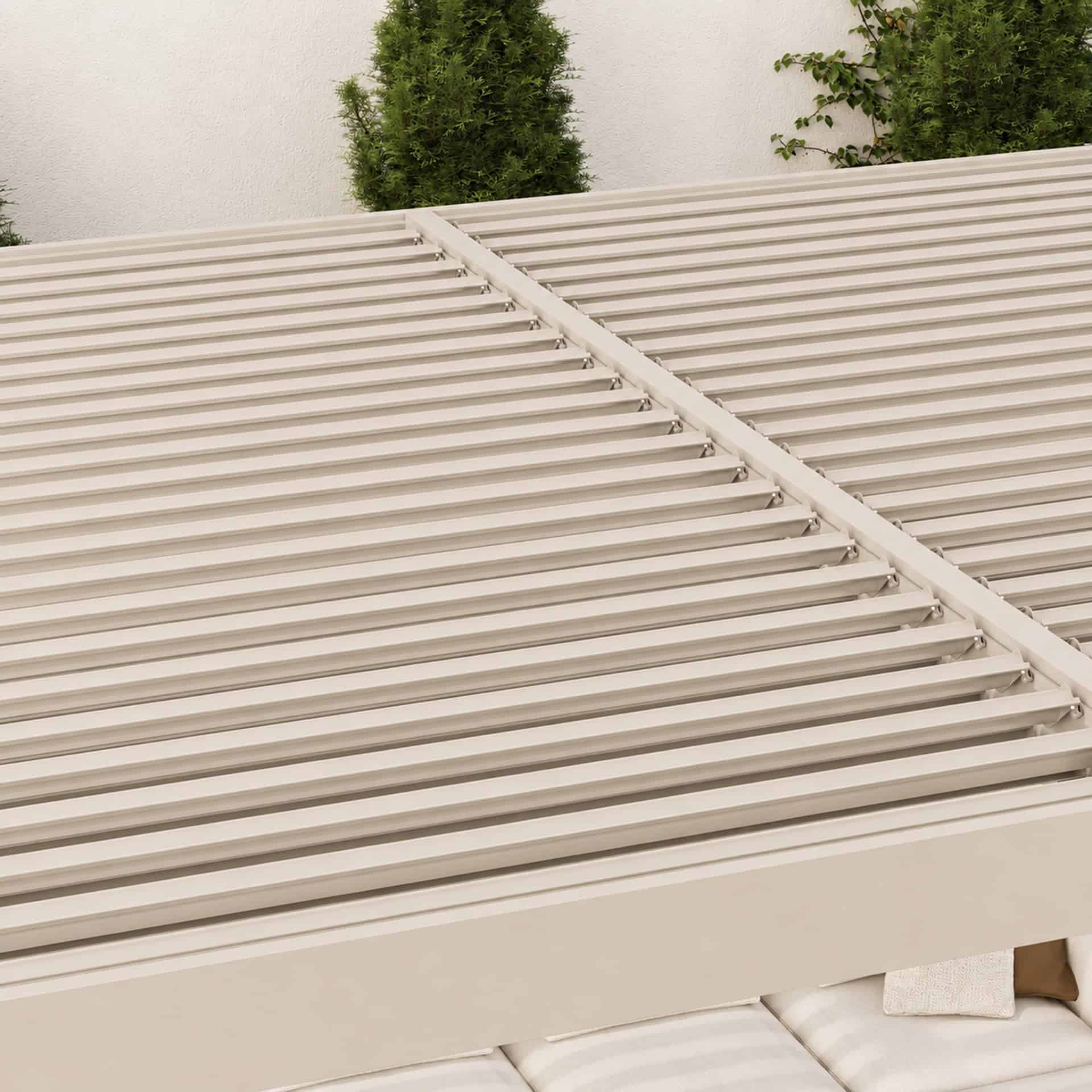

The roof of the Reflect DUO is divided into two separate louvre roofs, separated at the centre columns. This allows you to open or close both roof sections independently of one another. Using the control lever supplied, you can easily switch between the two roof sections and set the desired position of the slats on each side. This is ideal when you want to keep one section in the sun whilst providing shade for the other.

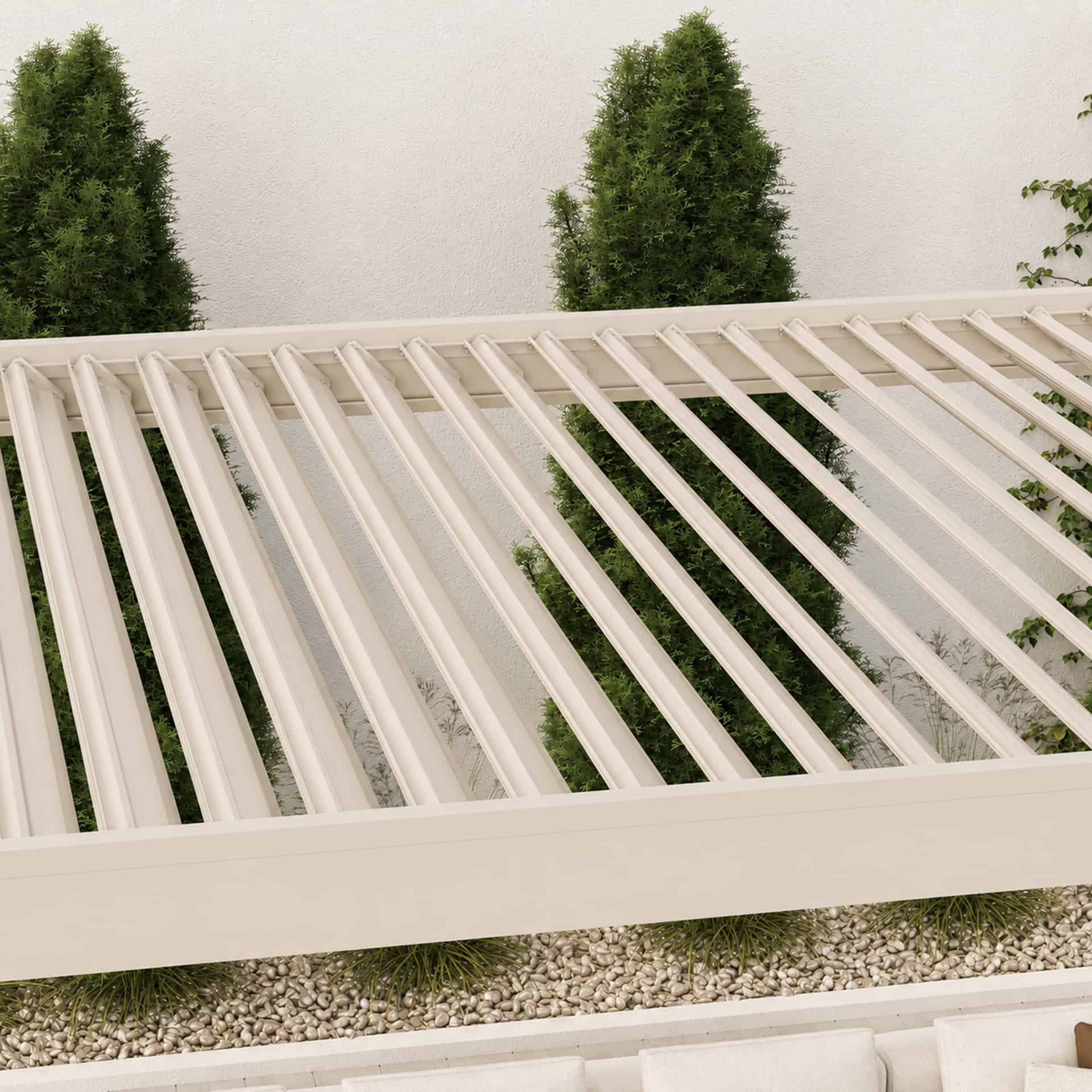

The aluminium slats can be tilted up to 135°, allowing you to easily control the amount of sunlight, shade and ventilation. Thanks to the wide opening angle, you can enjoy a pleasant outdoor climate throughout the day, tailored to the position of the sun.

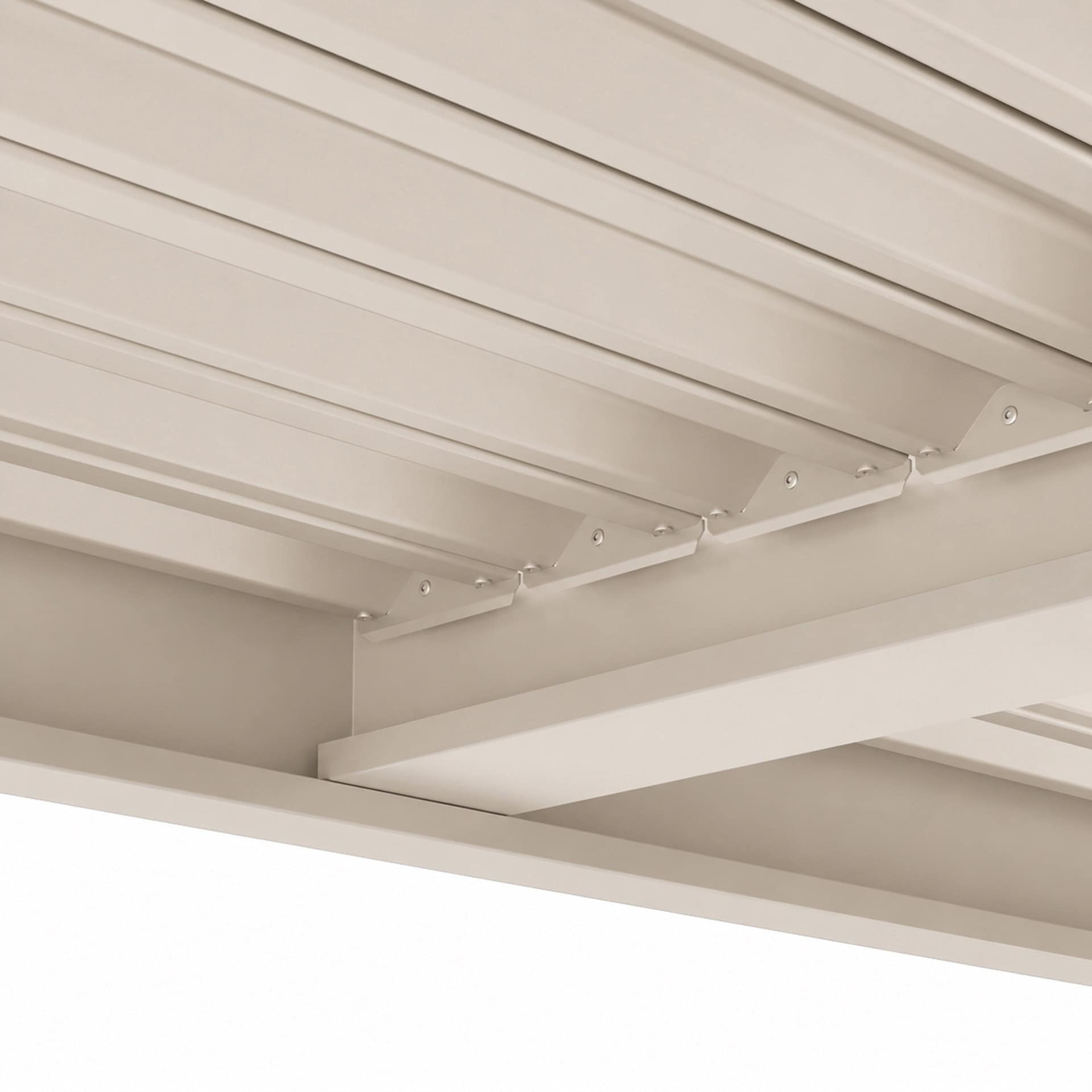

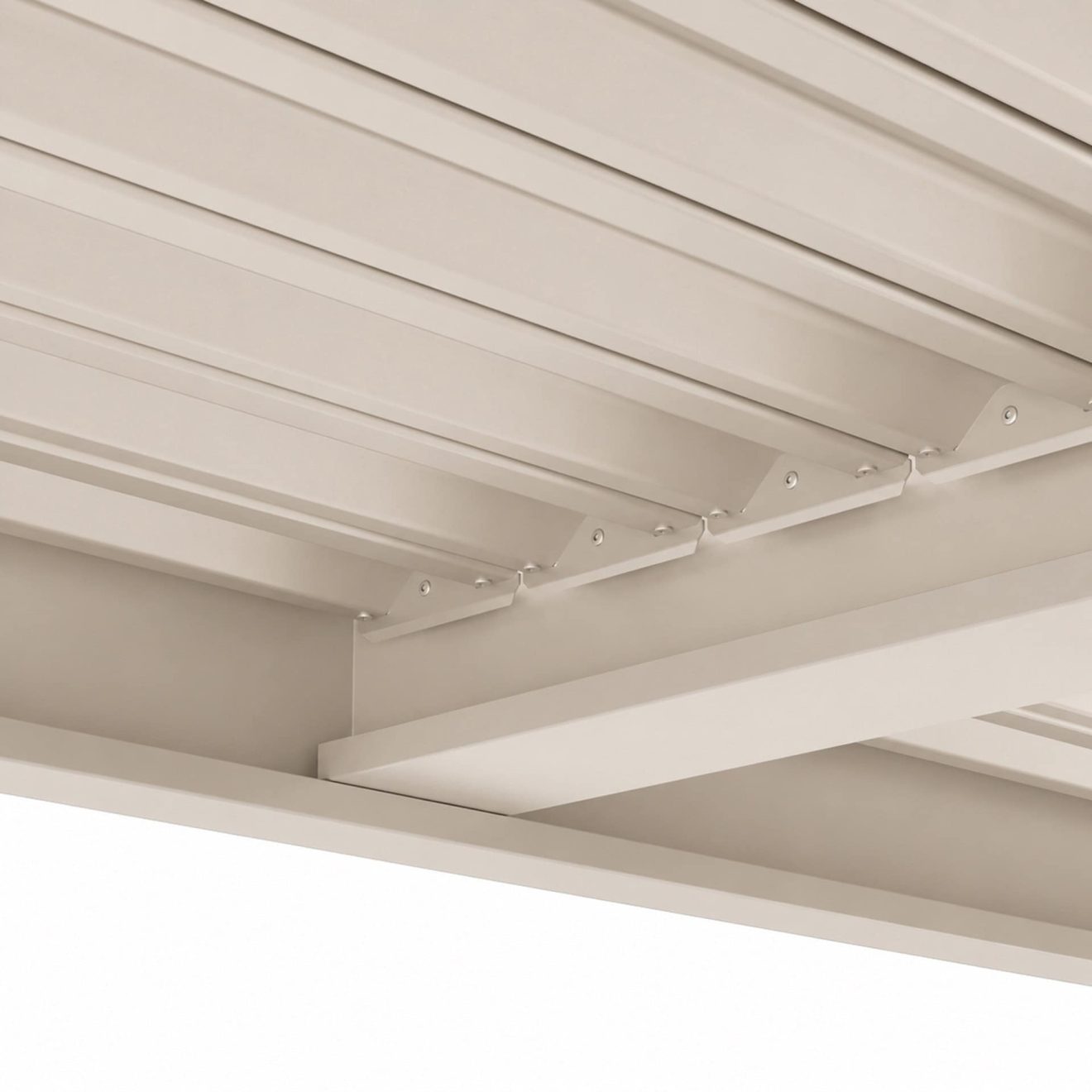

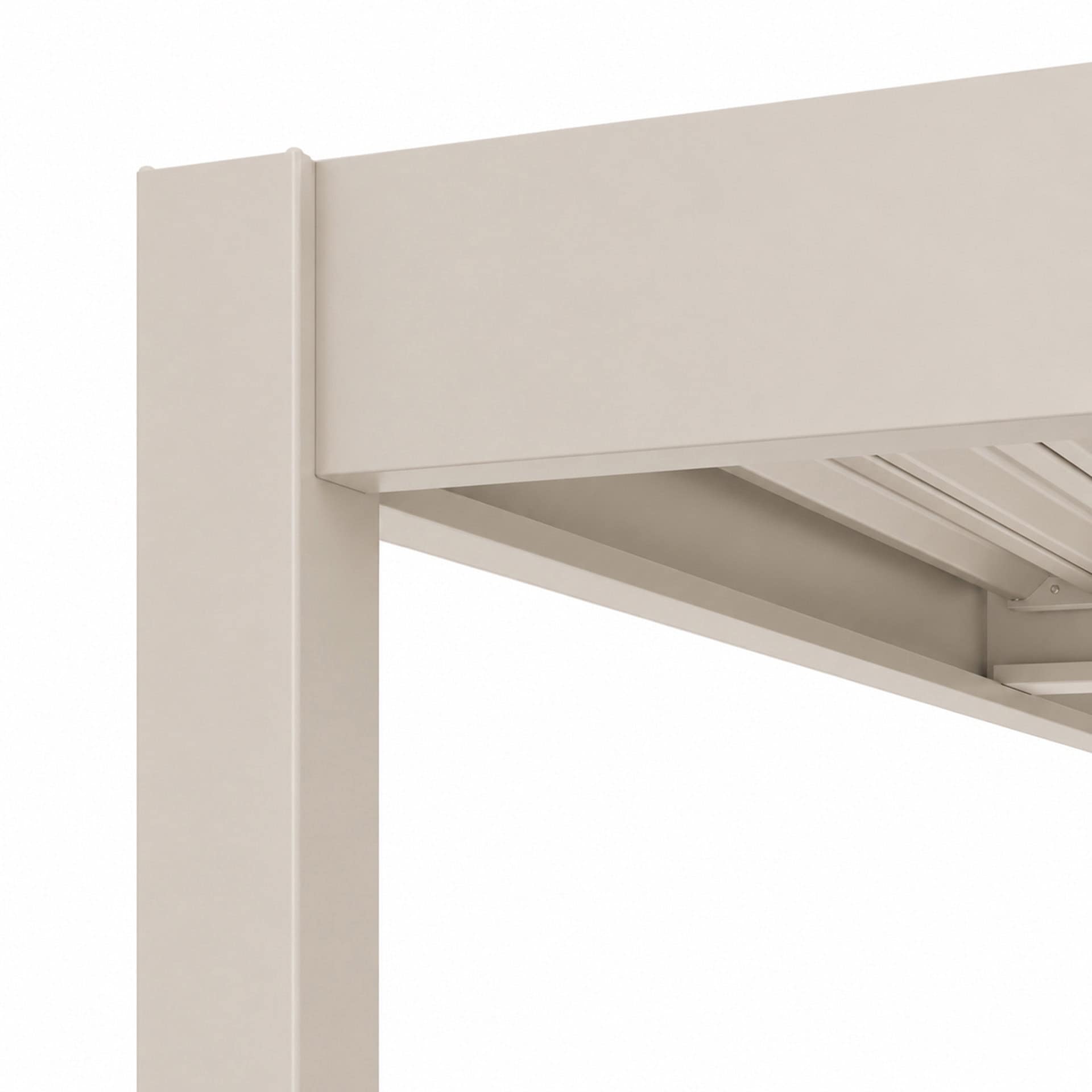

High cover beam for a sleek design

The Reflect DUO is fitted with a high cover beam (High Beam). This means that the open slats are largely concealed within the structure, so you do not see the open slats. This creates a calm, modern look and an unobstructed view upwards. This version features six robust 116 mm aluminium columns, ensuring optimal support even for larger spans. The strong aluminium structure is low-maintenance, corrosion-resistant and designed for years of trouble-free outdoor use.

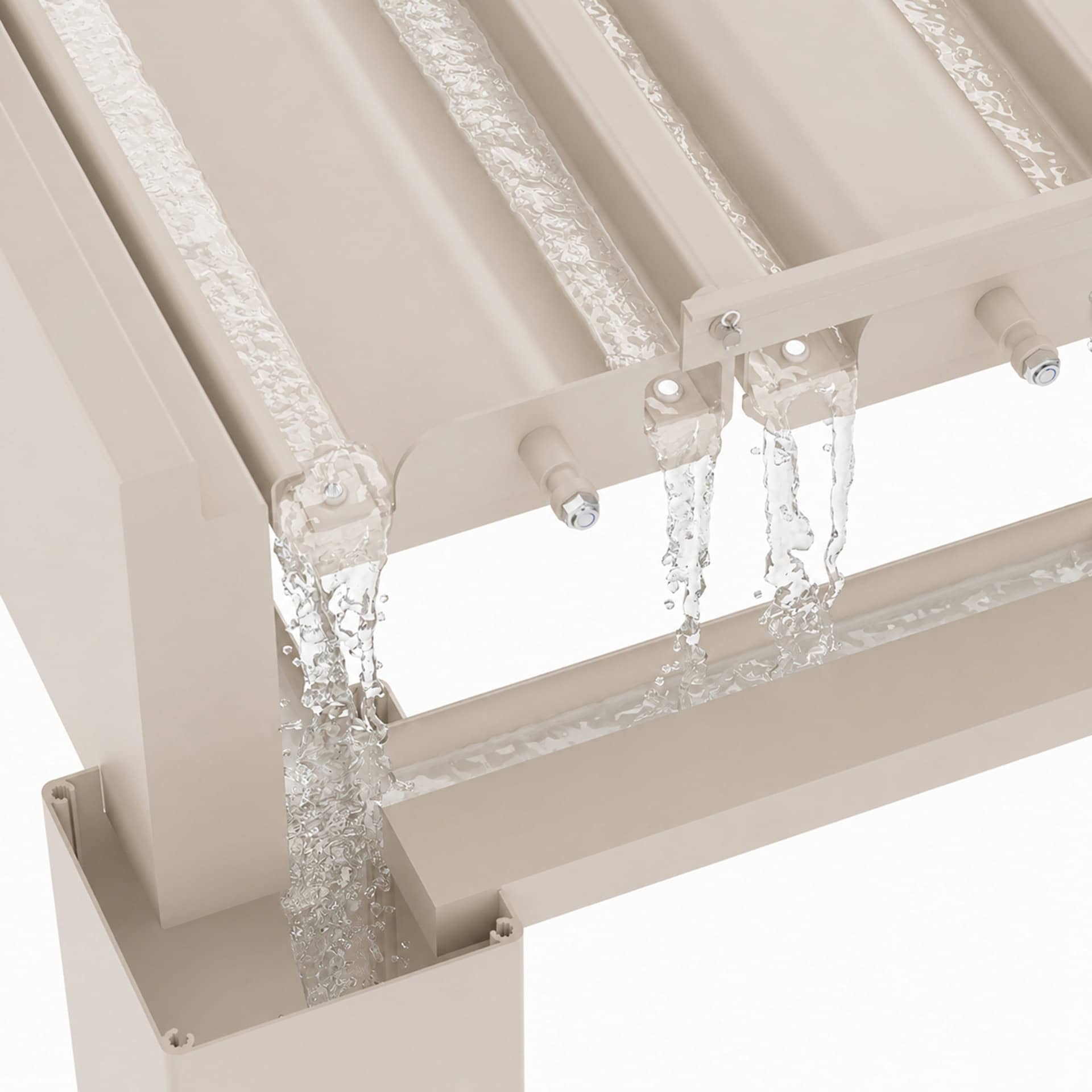

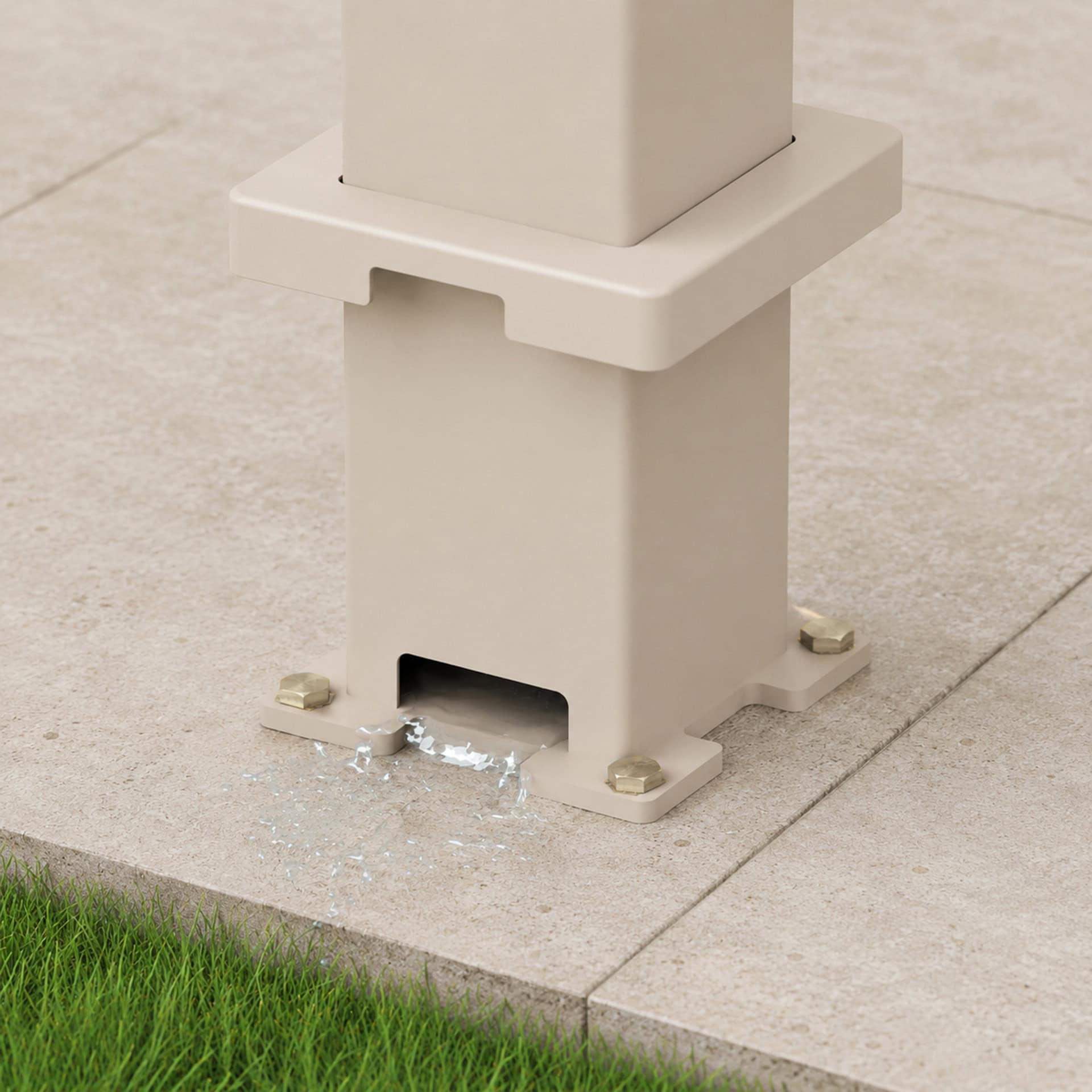

Integrated water drainage system

Thanks to the integrated guttering system, rainwater is channelled away via the hollow uprights. This ensures the pergola retains a sleek finish, with no visible downpipes, and allows you to sit comfortably outside even during a rain shower.

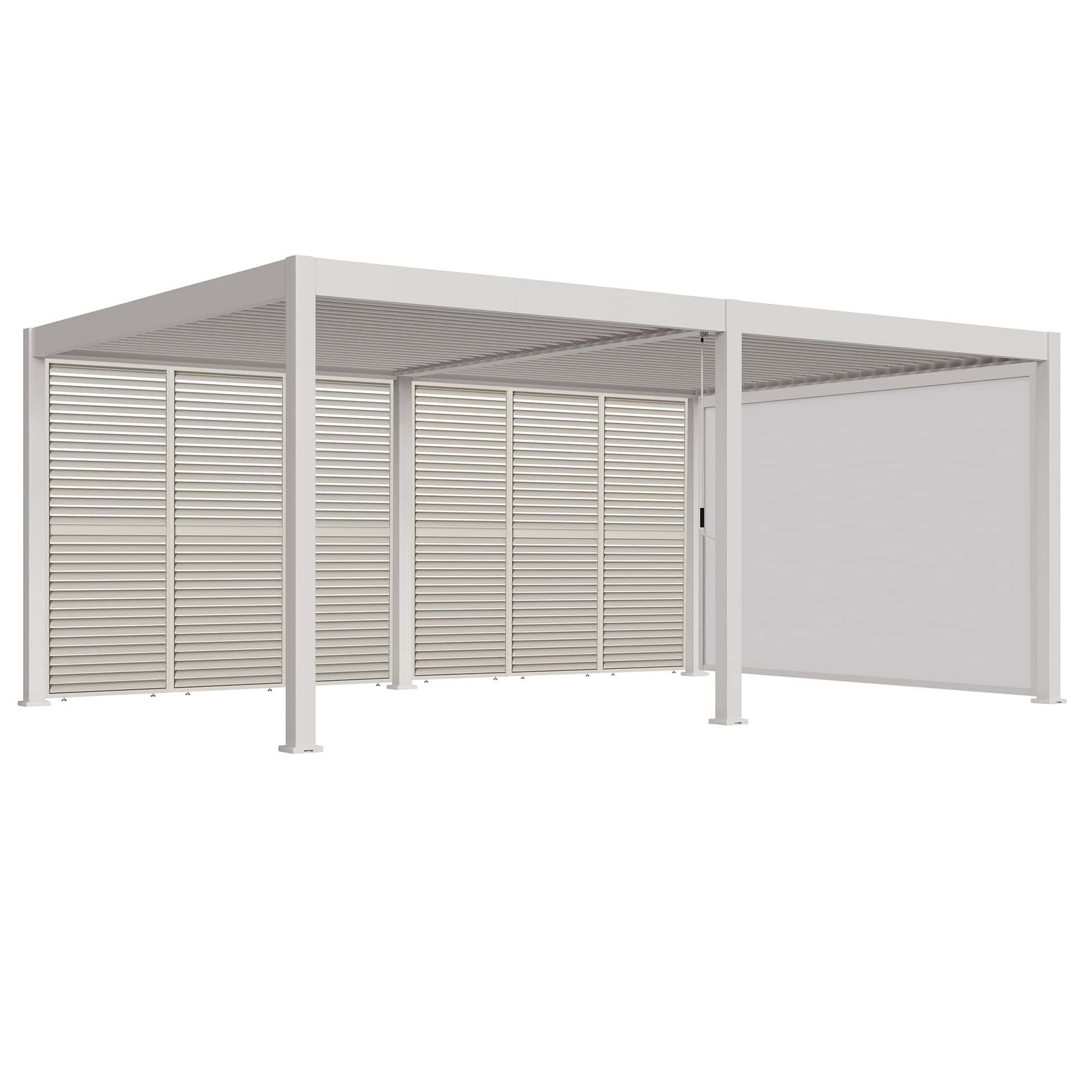

Expandable with Reflect accessories

Would you like to make your terrace canopy even more comfortable? The Reflect DUO 4 x 6 metres can be expanded with various accessories, including:

Reflect Screens (3 and 4 metres)
Reflect Louvre walls
Extra protection from the sun, wind and prying eyes

This allows you to customise your terrace canopy entirely to your liking and create a comfortable outdoor space that can be used all year round.

Key features

Dimensions: 4 x 6 metres
Innovative DUO louvre roof with two independently operable roof sections
Roof divided into two separate sections, with a partition at the level of the central columns
A single control lever that allows you to switch easily between the two roof sections
Aluminium louvres that tilt up to 135°
High Beam for a sleek and open design
Robust construction with six 116 mm aluminium columns
Integrated water drainage system via the uprights
Low-maintenance, corrosion-resistant and weather-resistant
Freestanding model
Can be extended with Reflect Screens and Reflect Louvre walls

With the Reflect DUO 4 x 6 metres, you’ll be adding a premium terrace canopy to your home that excels in flexibility, design and ease of use. Thanks to the two separately operable roof sections, you can easily create different zones of sun and shade, perfect for large terraces and long summer evenings.
